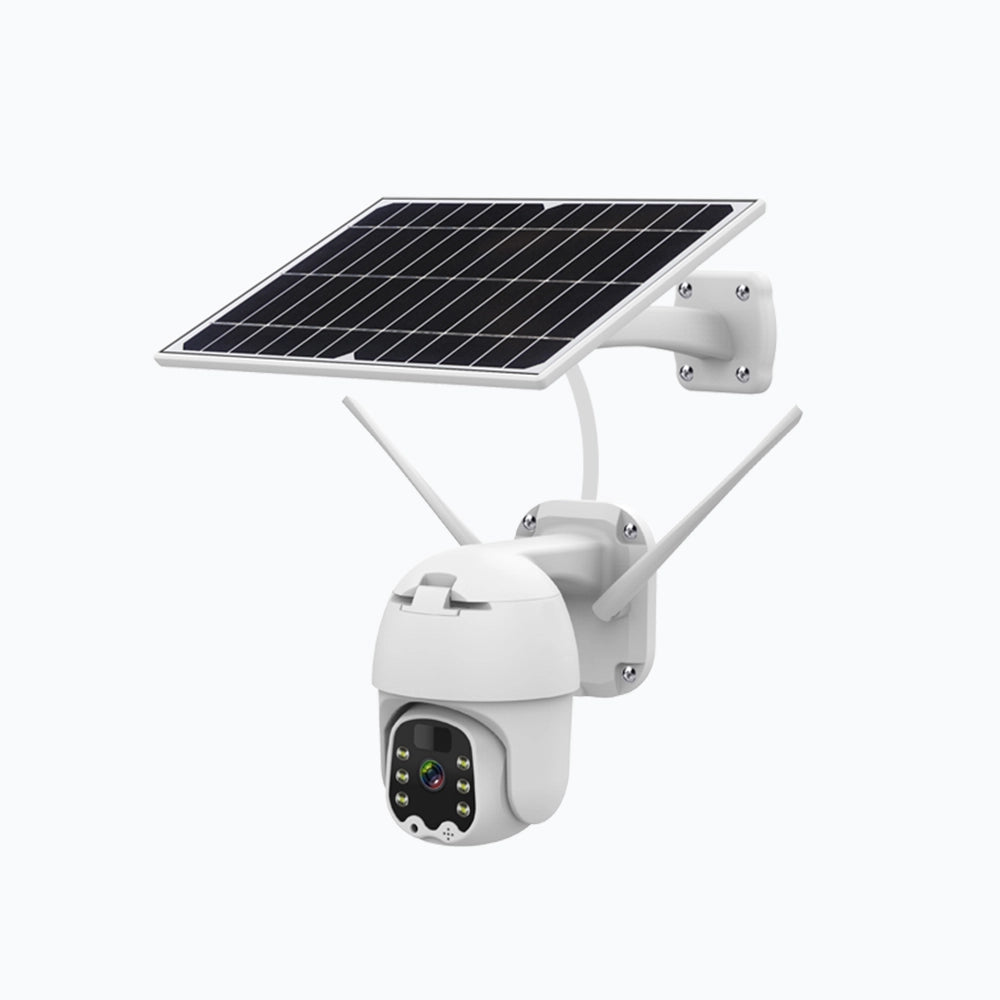

Eyevision ubox 8mp wifi Solar Ptz Camera
Eyevision ubox 8mp wifi Solar Ptz Camera
| Wireless Wi-Fi frequency |
2.4 GHz IEEE802.11b, 802.11g, 802.11n Draft Wi-Fi |
|---|---|
| 4G nano SIM card |
N/A |
| Sensor |
1080P Ingenic T31 Z1,2063 |
| Resolution |
Main stream: 1920×1080@,15fps, Sub stream: 640×360@15fps |
| Format |
Compression format: H.265 |
| Lens |
4mm F2.0 lens, Low lux., wide view angle: 120 degrees. 4X digital zoom |
| Night vision |
6pcs array infrared LEDs, night vision distance 30m. Full-colorful day/night |
| Compression |
G.726/AAC. Audio code rate: 8Kbps, 16bit |
| Input/Output |
Built-in MIC and Speakers, support two way audio |
| PIR Motion Detection |
Support max 12 meters pir detection range. |
| Alarm Linkage |
Alarm record videos to micro sd card: alarm mobile phone message push |
| Memory Card |
Support up to 128g micro sd card. Support cloud storage |
| Record |
Pir alarm recording |
| Replay |
Support app remote play and download the video |
| Solar Panels |
8w monocrystalline silicon solar panel |
| Battery |
Built-in 6 Pcs 18650 battery, total volume max 19200 mAh |
| Operating Mode |
Low power working mode |
| Wake-up Method |
Pir alarm wake up, remote manual wake up |
| Hibernation |
When alarm end or remote connection disconnected |
| Power Consumption |
Support app remote play and download the video |
| Rotation Angle |
Horizon Pan: 0o ~ 355o, Vertical Tilt: 0o ~ 90o |
| Spinning Speed |
Horizon Speed: 10o ~ 30o/S, Vertical Speed: 8o ~ 25o/S |
| Power Input |
DC5V 2A |
| Environment |
Environment — 20oC -+60oCf-4T-1.140oF, Humidity 10% – 80%, non-conder |
| Shell Material |
ABS fireproof plastic material, vandal-proof, waterproof level IP65 |
| Power Cable |
Type-C interface, extension cable 1.8 meters |
| Product Size |
265mm x 175mm x 230mm (L x W x H) |
| Package Dimensions |
288mm x 203mm x 170mm (L x W x H), Package weight: 1.93 Kg |
| Packing List |
IP Camera, Solar Panel, Support, Mounting Screws, Screwdriver, USB Cable, Manual |
