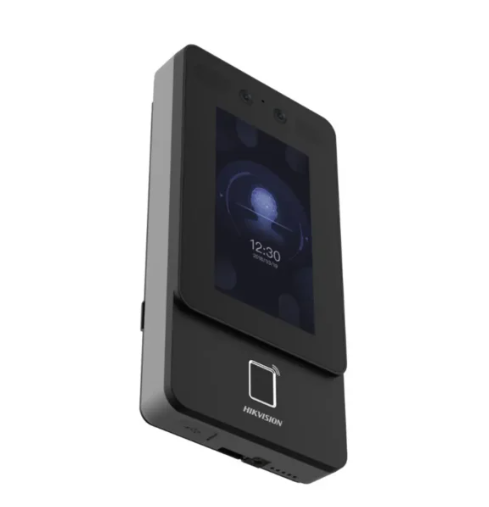

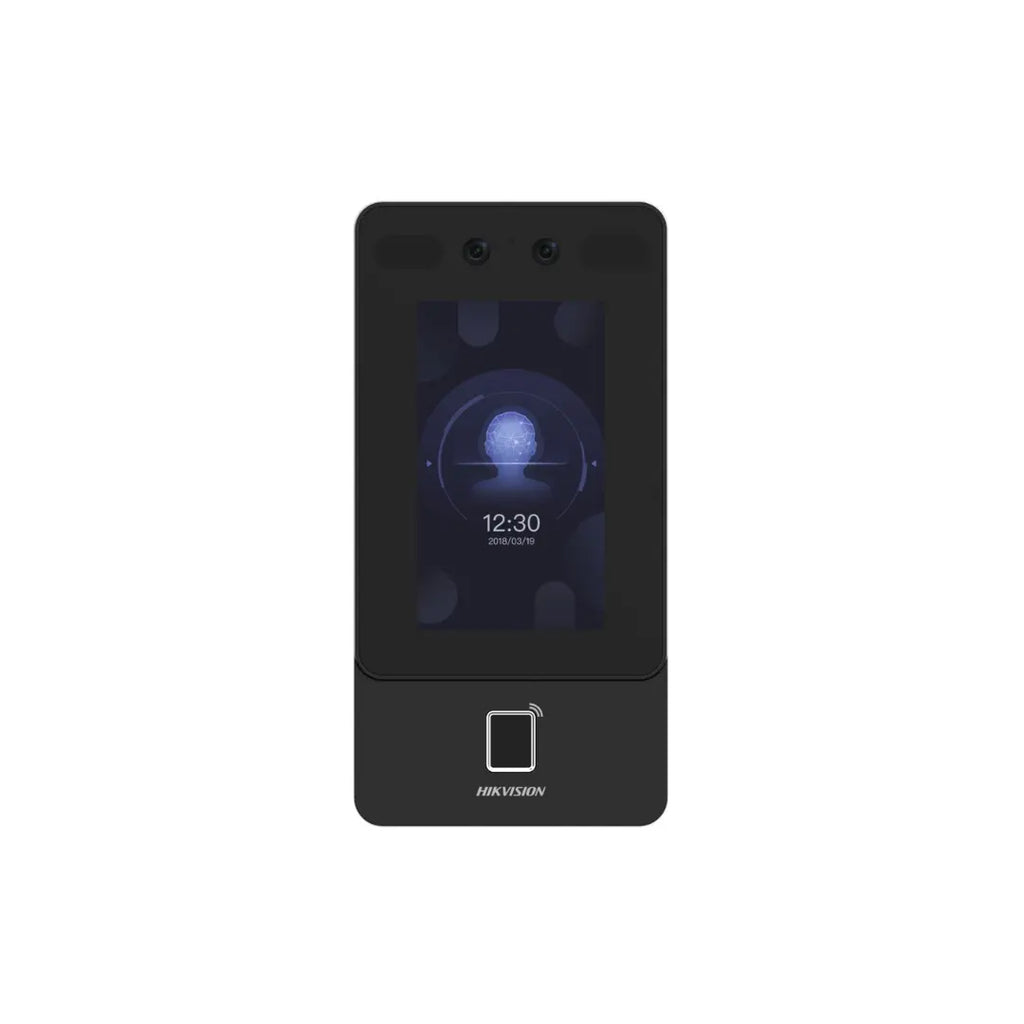

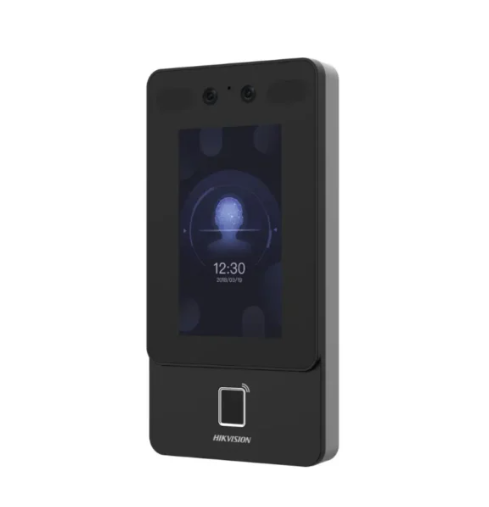

Hikvision DS-K1T342MFWX-E1 Face Recognition Terminal

Key Features:

• Face Recognition:
  • Recognition speed: ≤ 0.2 seconds
  • Capacity: Stores up to 1,000 face templates
  • Identification distance: 0.3 m to 1.5 m (ideal for different entry scenarios)
• Authentication Methods:
  • Face recognition
  • Card reader (optional): Supports MIFARE cards
  • PIN code entry (optional)
• Display:
  • 7-inch color touch screen for user interface
  • Intuitive menu and easy-to-navigate display
• Security & Privacy:
  • Encrypted data transmission for secure access control
  • Advanced anti-spoofing technology to prevent fraudulent access attempts (protects against photos or video impersonation)
• Integration:
  • Integrates with Hikvision’s security management systems, including software for access control and video surveillance
  • Compatible with third-party software via open API for enhanced system flexibility
• Design & Durability:
  • Elegant and compact design suitable for both indoor and outdoor installations
  • Weatherproof (IP65-rated): Designed for various environmental conditions
  • Built-in speaker and microphone for audio prompts and notifications
• Communication:
  • TCP/IP & Wiegand protocol support for data transmission
  • Relay output to control electric locks or other devices
  • RS-485 interface for system expansion
• Power Supply:
  • 12V DC (power adapter included)
• Additional Features:
  • Multi-language support for global applications
  • Built-in camera with infrared illumination for low-light performance
  • Voice prompts for user guidance and system notifications

Specifications at a Glance:

• Model: DS-K1T342MFWX-E1
• Display: 7-inch color touch screen
• Camera: 2 MP (supports infrared face recognition)
• Face Storage Capacity: Up to 1,000 face templates
• Recognition Speed: ≤ 0.2 seconds
• Identification Distance: 0.3m – 1.5m
• Communication Protocol: TCP/IP, Wiegand, RS-485
• Power Supply: 12V DC
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Humidity: 10% – 90% (non-condensing)
• Dimensions: 205 mm x 139 mm x 35 mm (8.1″ x 5.5″ x 1.4″)
• Weight: Approx. 0.8 kg (1.76 lbs)
