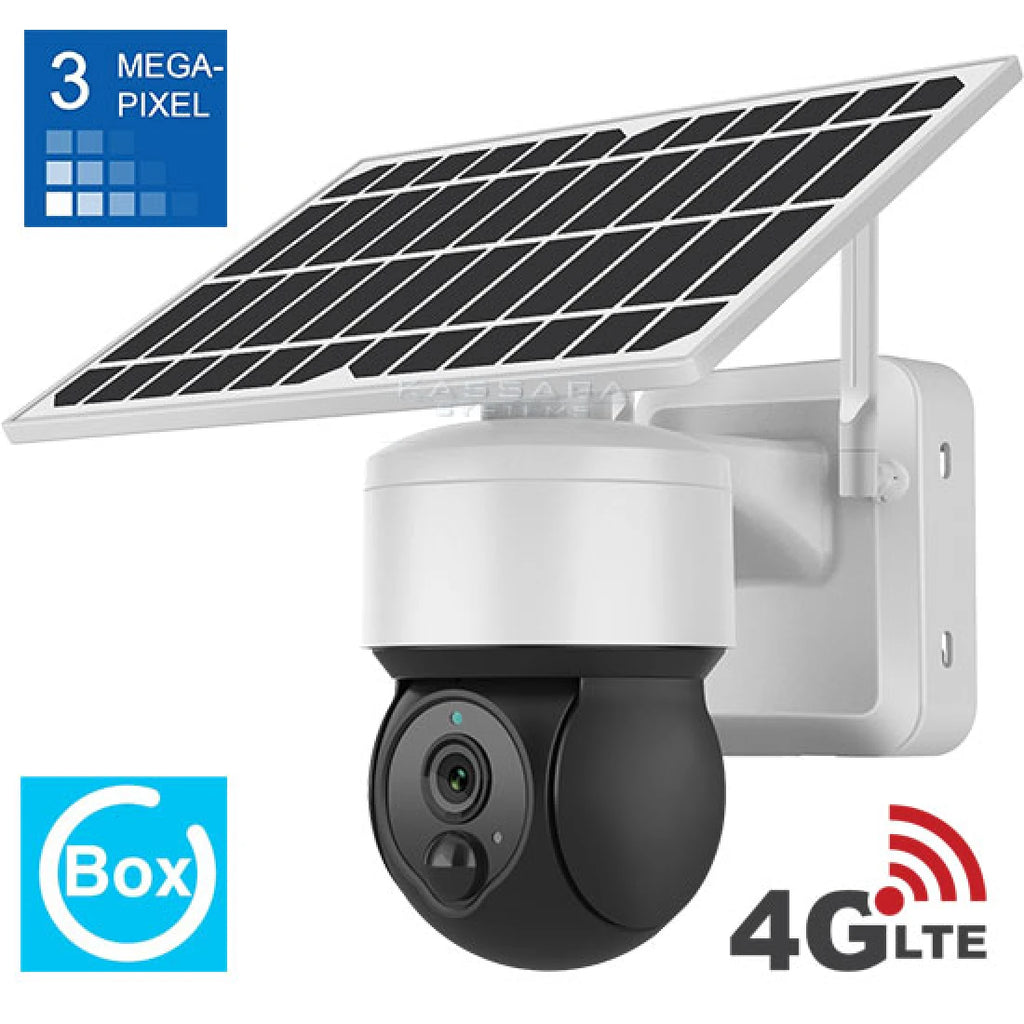

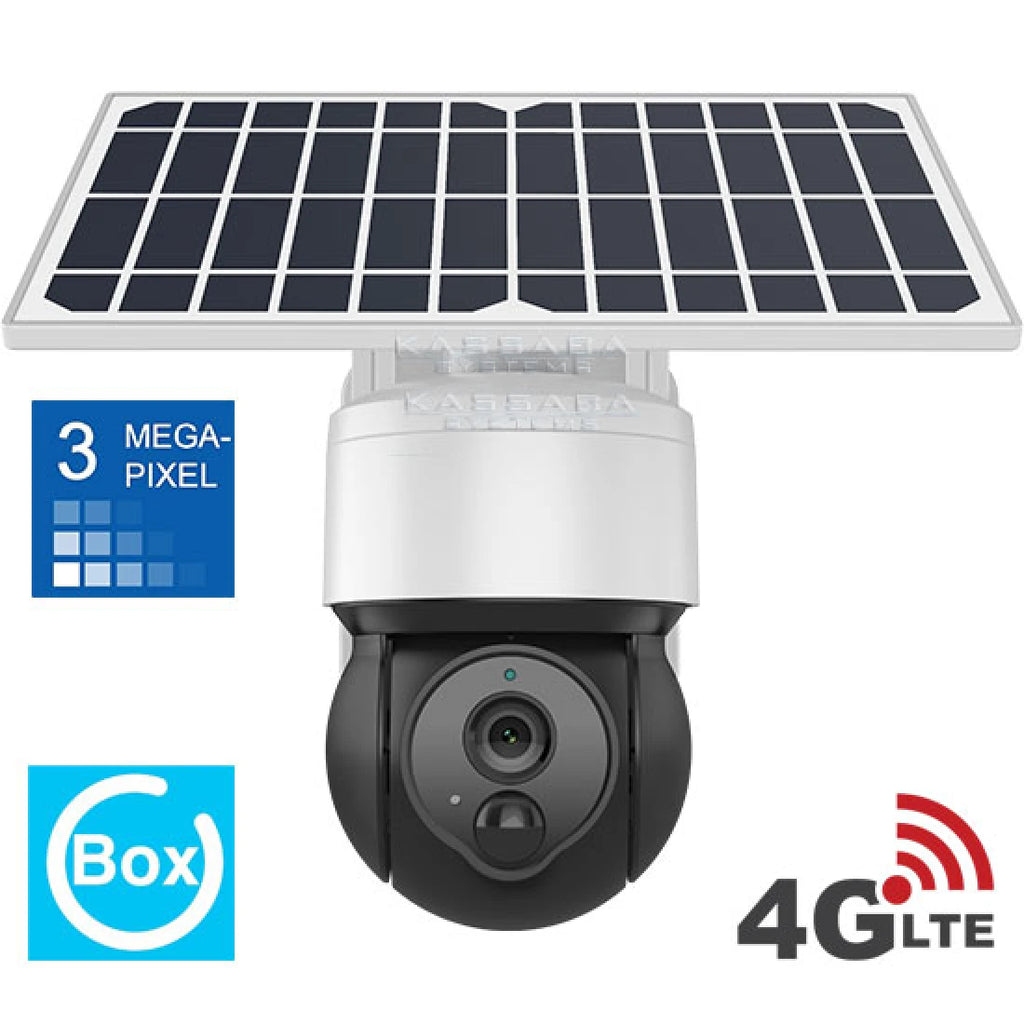

Ubox 4G Solar Camera 3MP

Technical parameters of solar camera UB-17WF-3M:

• Matrix: 1/2.9" Sony IMX 335 High Class CMOS sensor;
• DSP processor: T31ZX;
• Resolution: 3MPX 2048x1536;
• Lens: Wide-angle 3.6mm;
• Horizontal control 350° and vertical 90°
• Rotation speed: horizontal 55°/sec., vertical 40°/sec.;
• Human movement sensor, against false alarms;

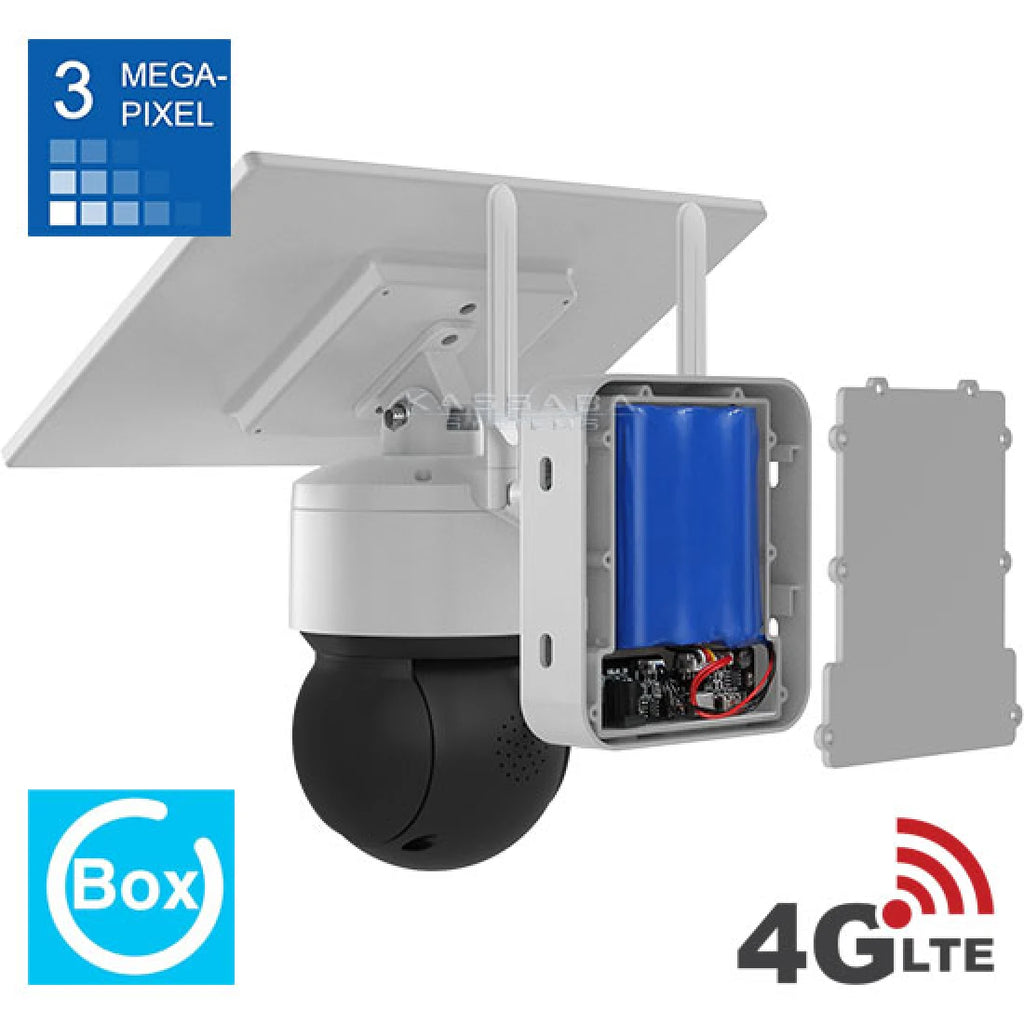

• Batteries with capacity: 3x2500mAh, total capacity 7500mAh;
•  Battery type: 18650;

• Solar panel type: Polycrystalline;
• Solar panel capacity: 5W;
• Possibility to charge the batteries via the TYPE-C cable included in the kit;
• Full charging time via TYPE-C connector - 8-10 hours.
• Power consumption in stand by mode: 0.03W;
• Power consumption in operating mode: maximum 4W;
• Viewing angle: >85°.
• Video stream: 15fps - real time;
• Compression: H.264/ H.265;
• Mobile monitoring via iOS and Android ;
• Mobile application:  UBox;
• PIR sensor detection angle - 110 º  , distance 12 meters;
• Slot for Micro SD memory card with a capacity of 128GB;
• Motion detection recording;
• Built-in highly sensitive microphone;
• Built-in speaker for two-way audio connection;
• Microphone range - 20 meters;
• Minimum light sensitivity: 0.0001 Lux with IR off and 0.00 Lux with IR on;
• Network protocols: TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P;
• Image parameters: Flip,Mirror;
• Shutter speed: Automatic 1/50 1/60 - 1/50000 sec.;
• Signal to noise ratio: > 69dB;
• 2D stand for easy wall mounting;
• Waterproof housing in white color - IP66;
• Double Light backlight - combined IR for black and white image and white LED for color image at night;
• 6pcs. white LEDs + 4pcs. IR LEDs;
• Night vision up to 30m;
• Dust, moisture-proof IP66;
• Operating temperature: -20℃ to +50℃
• Included in the set: 1 PT IP camera, solar panel, solar panel stand, battery charging cable, instructions and fasteners;
